Domestic Heat Pump Water Heater, it's split type heat pumps, the heating capacity max could to 9KW, which could meet about 10peoples large family domestic hot water use requirements. Domestic Heat Pump Water Heater is circulating heating for supplying hot water, it's built-in circulating pump, and the LCD controller support for wifi function.
Parameters
|
Comfort Series (Home use air source heat pump water heater circulating type) |
|||||
|
Model |
CKXRS-3.5 IH |
CKXRS-5.0 IH |
CKXRS-7.0 IH |
CKXRS-9.0 IH |
|
|
Rated Heating capacity (KW) |
3.5 |
4.8 |
6.8 |
8.4 |
|
|
Rated outlet hot water quantity (L/H) |
75 |
108 |
150 |
193 |
|
|
Outlet water rated temp (℃) |
55 |
||||
|
Outlet water max. temp (℃) |
60 |
||||
|
Electricity parameter |
Rated power (KW) |
0.9 |
1.24 |
1.71 |
2.13 |
|
Rated current (A) |
4.1 |
5.6 |
7.8 |
11.4 |
|
|
Power supply |
1N 220V~/50HZ |
||||
|
Max power (KW) |
1.28 |
1.63 |
2.26 |
3.01 |
|
|
Max current (A) |
5.7 |
7.4 |
10.4 |
14.6 |
|
|
Refrigerant |
R410a |
||||
|
Dimensions mm |
783*286*684 |
823*356*684 |
|||
|
Weight KG |
43 |
51 |
65 |
68 |
|
|
Waterproof grade |
IPX4 |
||||
|
Defend electric shock grade |
GRADE 1 |
||||
|
Noise Db |
≦53Db |
≦55Db |
|||
|
Compressor |
GMCC Rotor type |
||||
|
Pressurized Water Tank with Safety Valve(Carton Packing) |
|||||
|
Specifications |
150L |
200L |
300L |
500L |
|
|
Pipe size (mm) |
DN15 |
DN20 |
|||
|
Water Tank Size |
φ480 x 1394 |
φ520 x 1543 |
φ580 x 1764 |
φ700 x 1835 |
|
|
Installation |
Floor Standing Type |
||||
|
Concurrent User |
3-4 persons |
4-5 persons |
6-8 persons |
10-13 persons |
|
|
Remarks: |
|||||
|
1. Testing condition: use side initial water temperature: 15℃, end water temperature 55℃, dry-bulb temperature 20℃, wet-bulb temperature 15℃. |
|||||
|
2. The above model is our basic type, the final product may have some differences from it. |
|||||
Circulation water pump built-in.
Wifi function for option, you can control your heat pump anytime with the stable mobile app on your phone
High precision electronic expansion valve: use electronic expansion valve for controlling, reach 500 steps adjustment, adjust super heat degrees accurately, achieve high efficiency operation system.
Low ODP and safe refrigerant R410A, no worry of flammability.

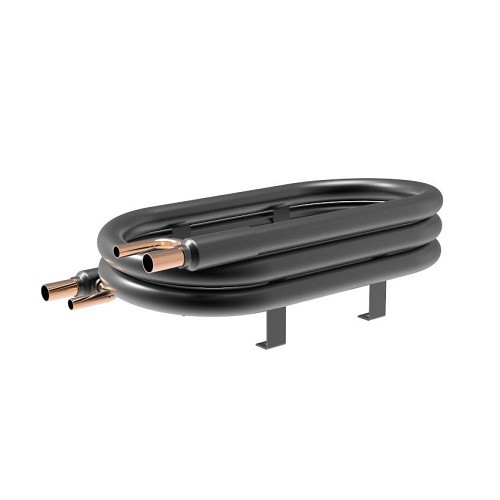

Tube in tube heat exchanger, high efficiency, make cooling possible.
